Lodes Map

Lodes is revolutionizing the world of lighting with Map, a graphic and ingenious system that connects and powers multiple light sources via an electrified fabric strip, a reimagined design of spotlights on tensioned cables.

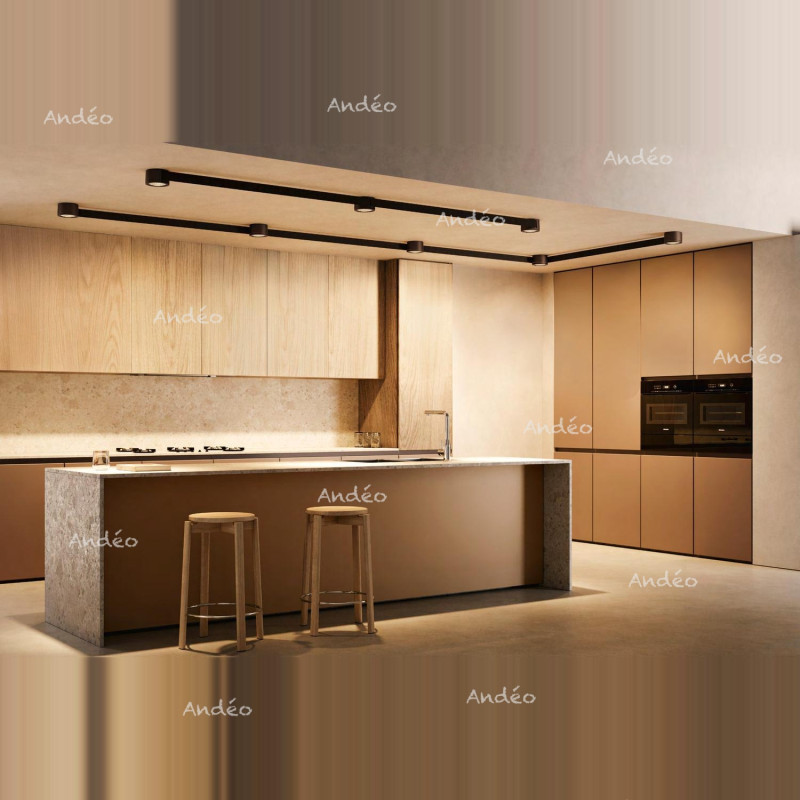

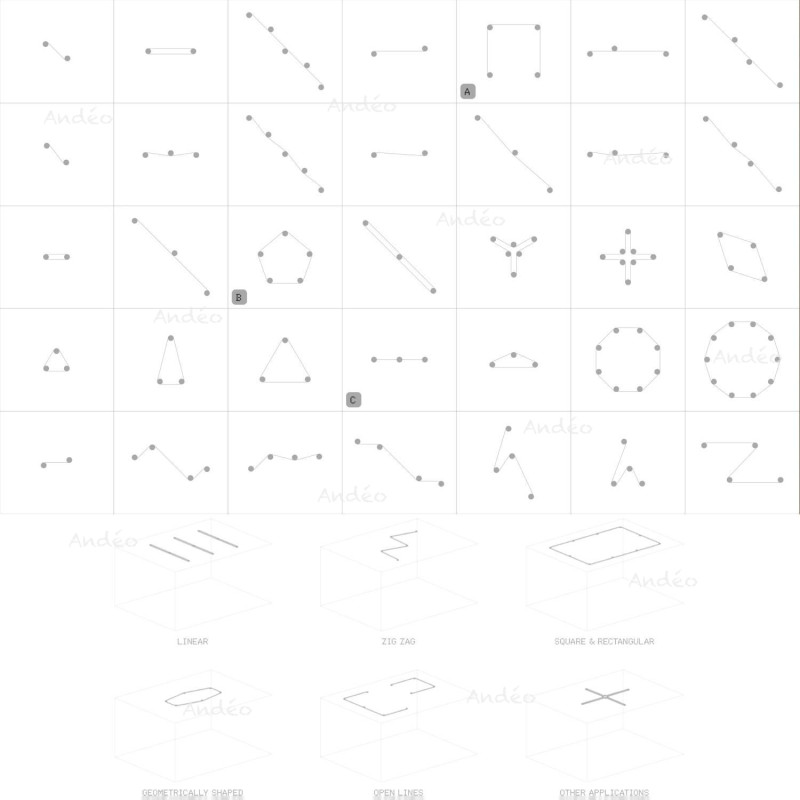

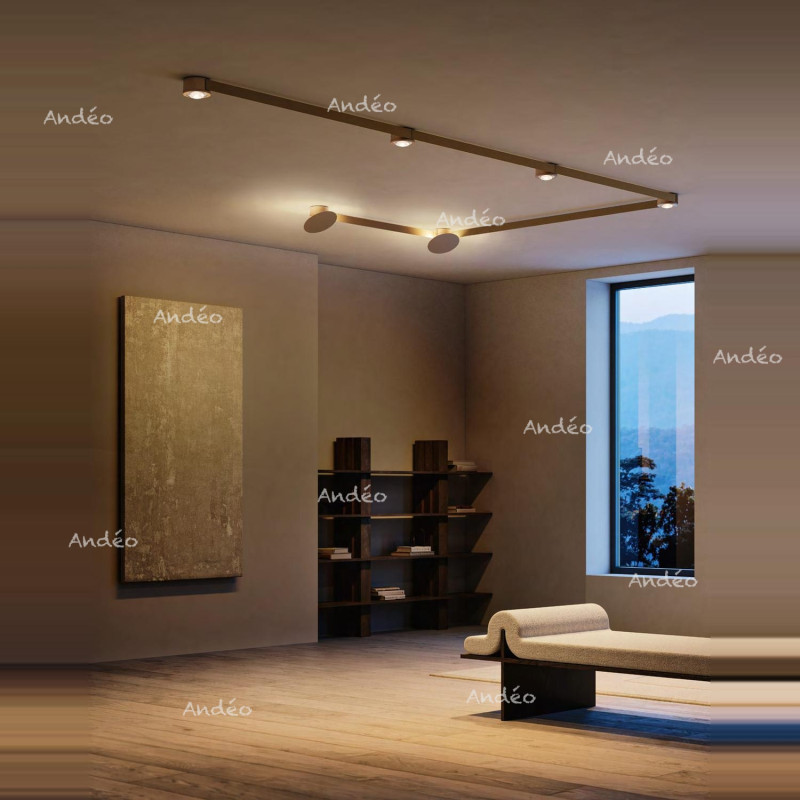

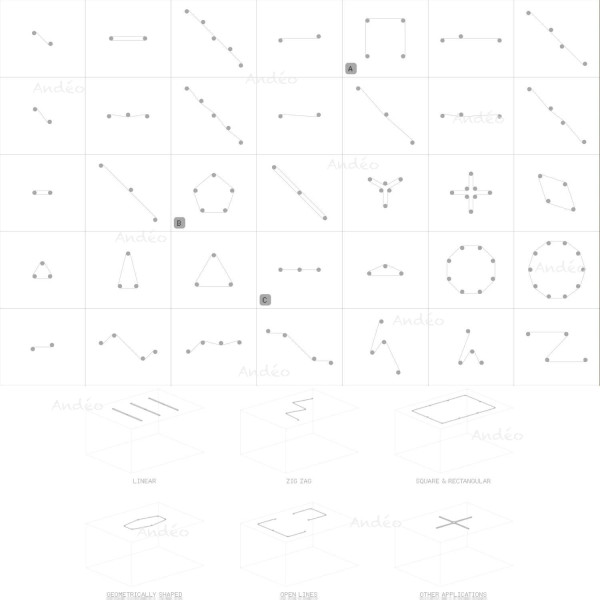

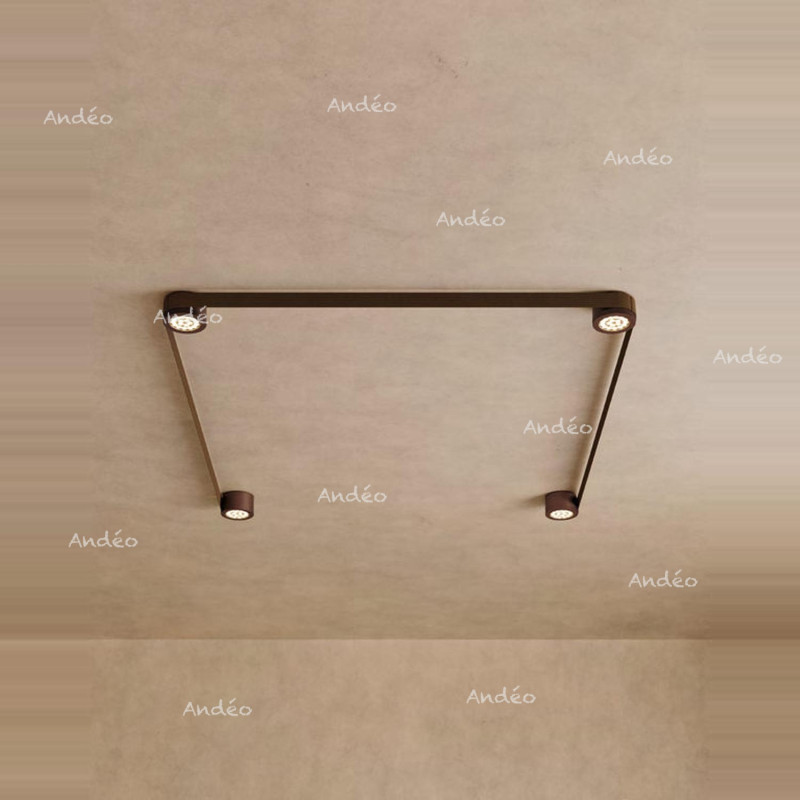

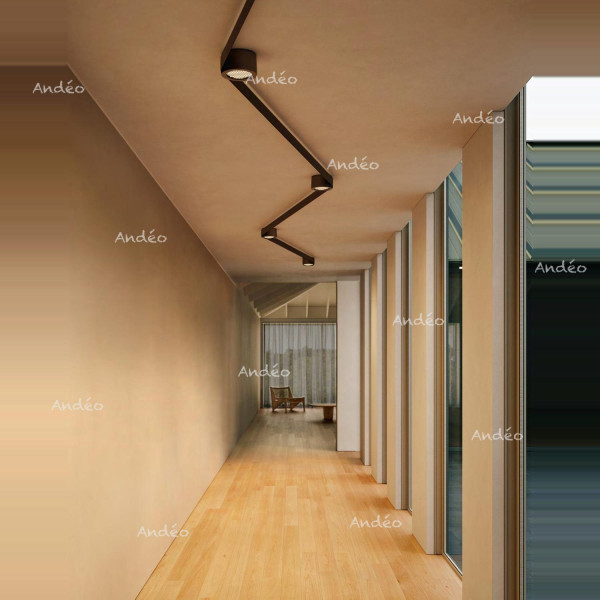

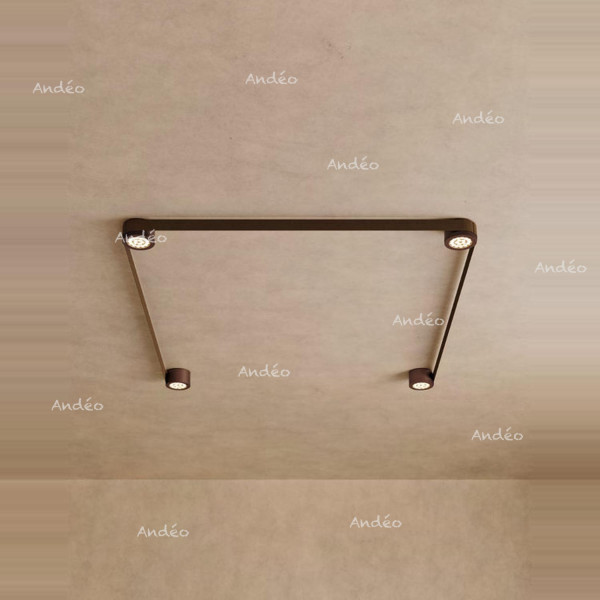

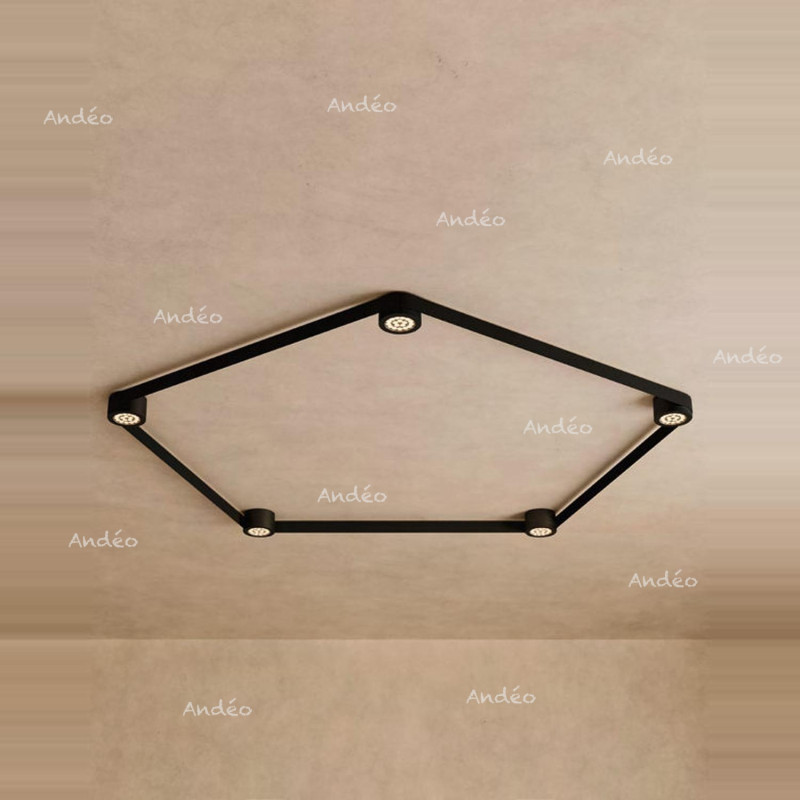

Lodes Map consists of various light points, which you can place as you wish, whether on the ceiling or on the wall, and then you connect these LED lights together with the fabric strip. The combination of these different elements allows you to create unique shapes, bringing a true visual signature.

No need for different power supplies, a single electrical cable powers the various lights, and the fabric strip distributes the electricity via two integrated conductors within the fabric.

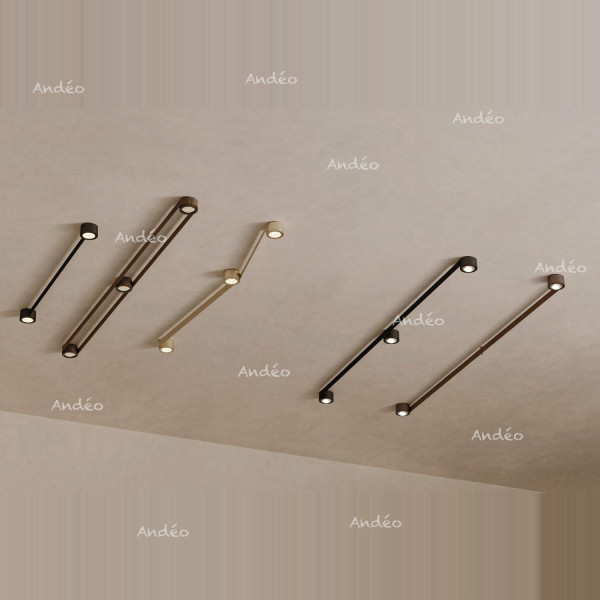

This flexible ribbon and the different light sources are offered in three colours: Black, Champagne, and Brown.

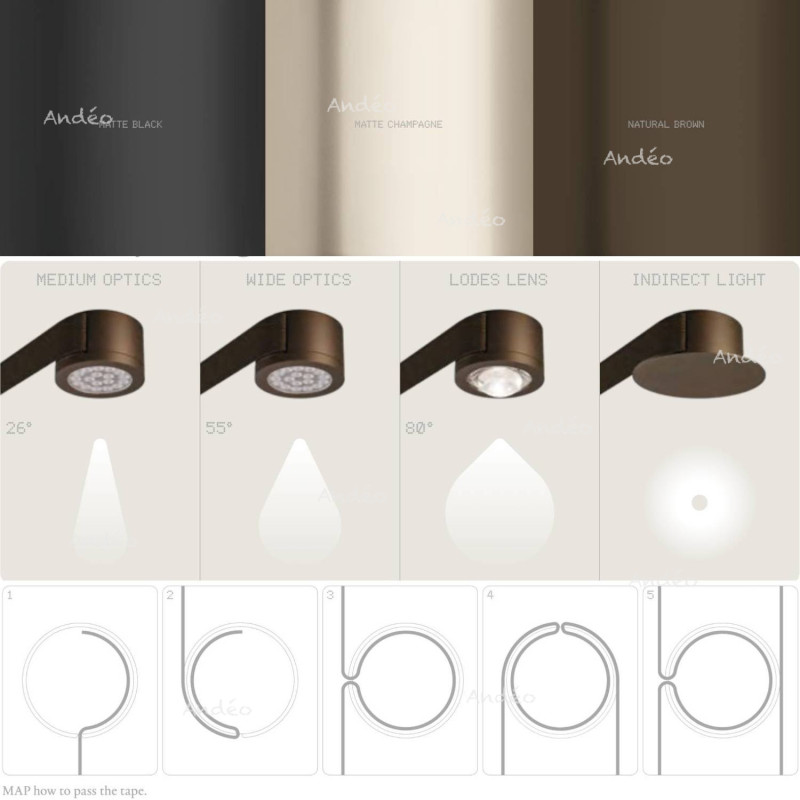

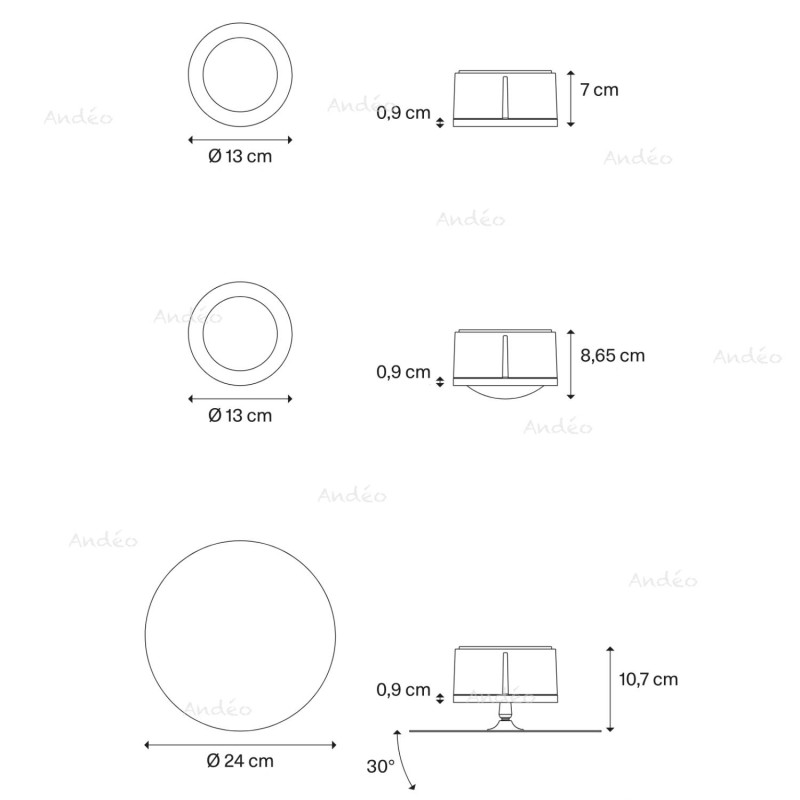

For the lighting, 6 options are available: 5 for direct lighting ("spot effect"), and one for indirect lighting:

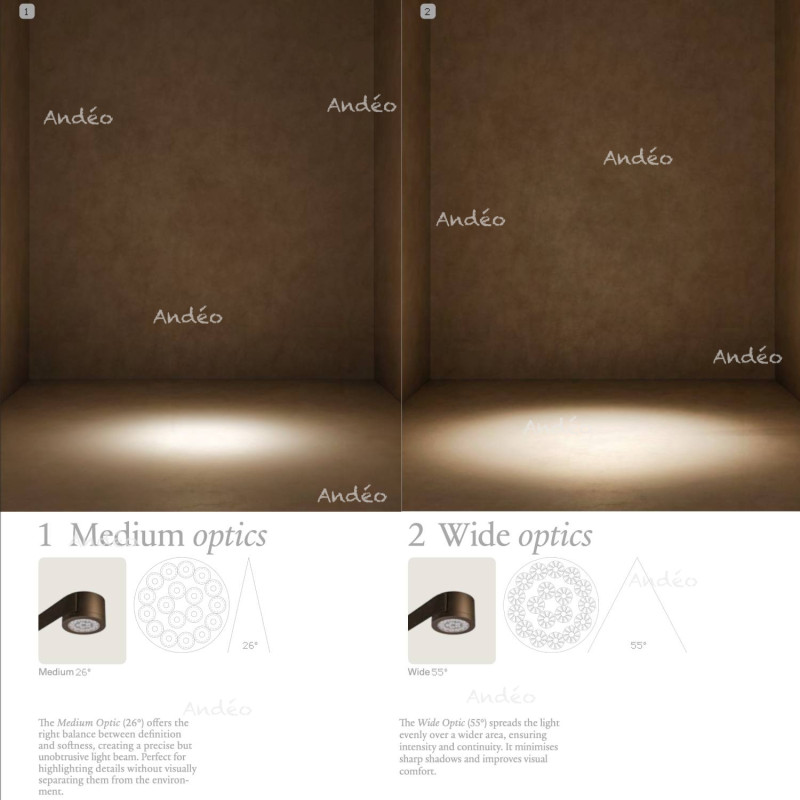

- Medium Optics 26°: concentrated beam, perfect for highlighting an object or intensely lighting a specific area.

- Medium Optics 26° + Honeycomb: Same characteristics as the above product + anti-glare accessory.

- Wide Optics 55°: for a less concentrated light distribution, with a more classic spot-like diffusion.

- Wide Optics 55° + Honeycomb: Same characteristics as the above product + anti-glare accessory.

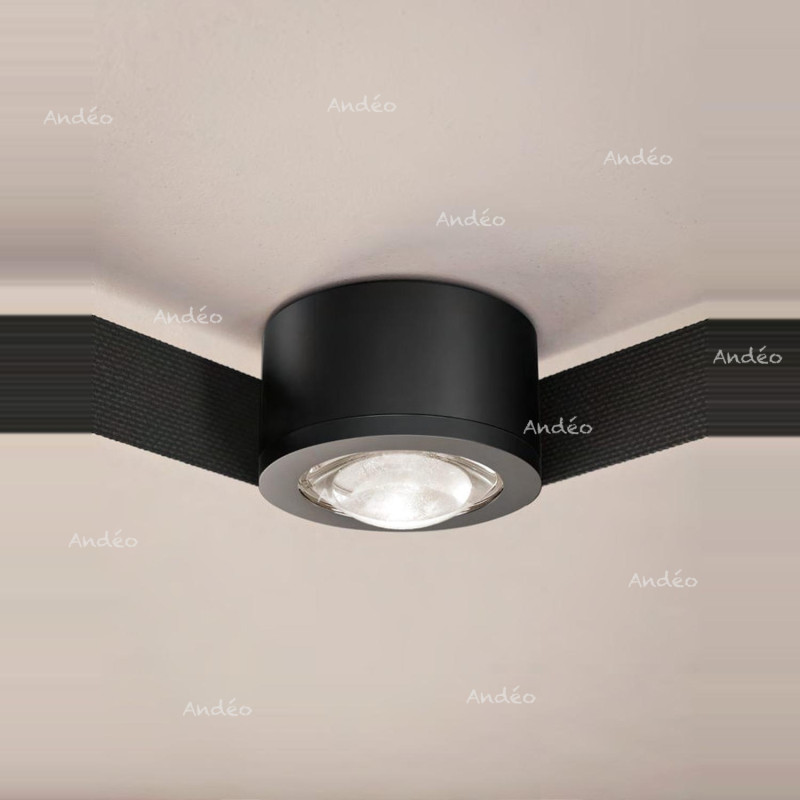

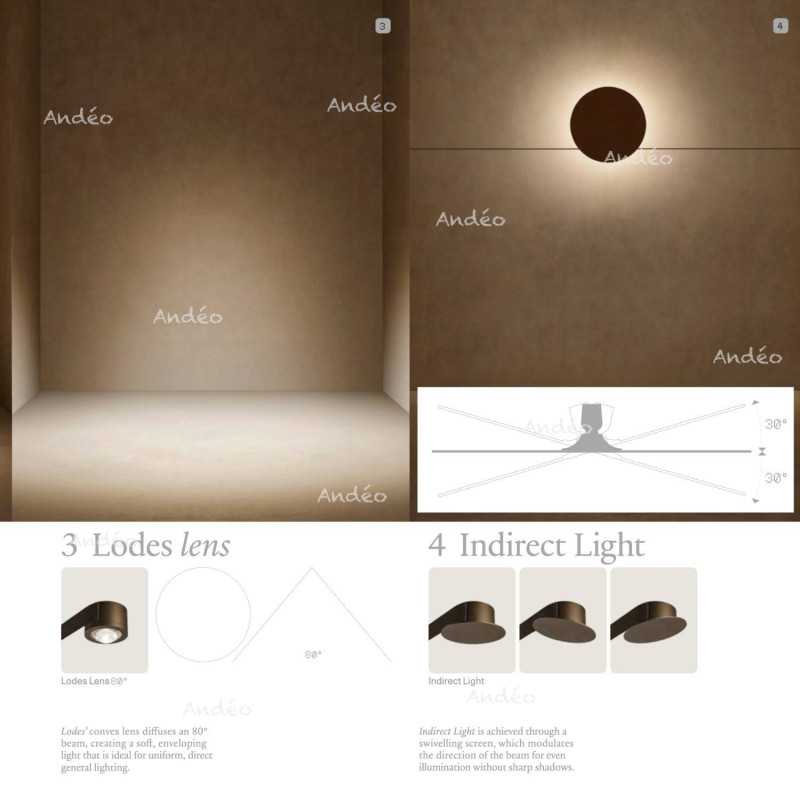

- Lodes Lens 80°: for a more diffuse and enveloping light, ideal for general lighting.

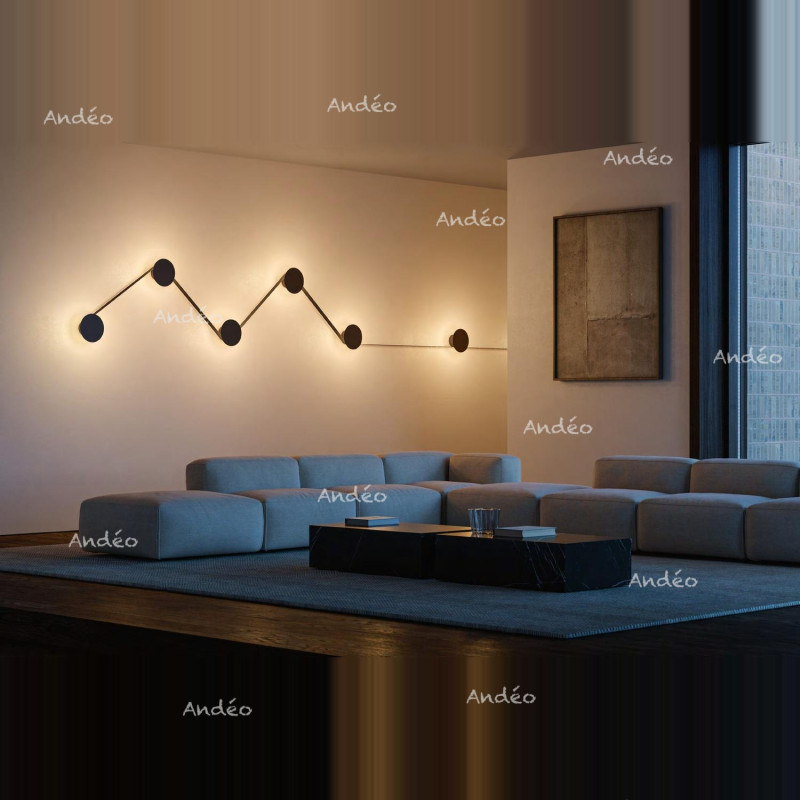

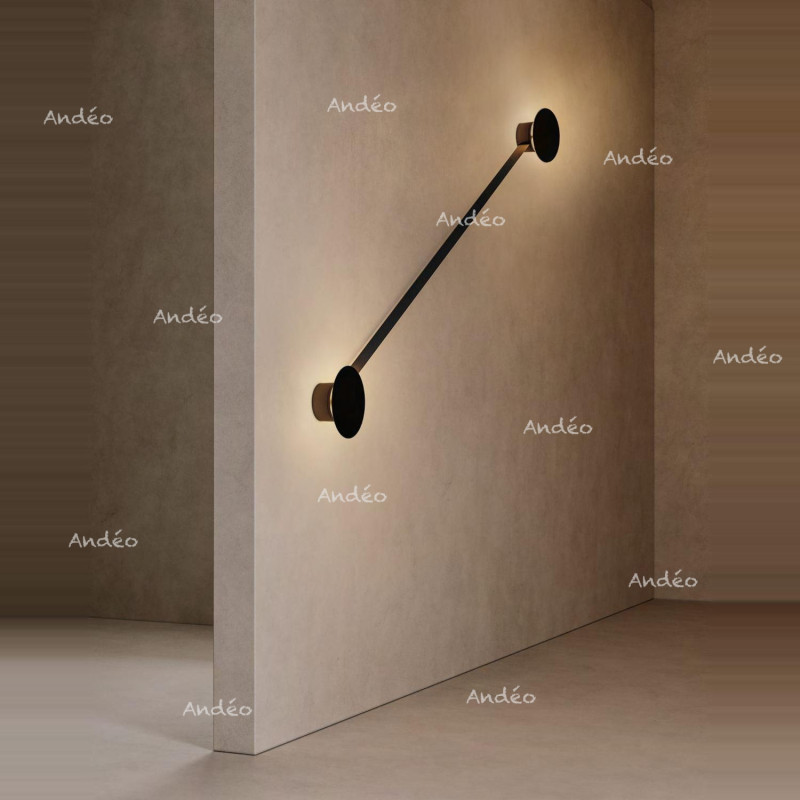

- Indirect Light: thanks to an inclinable disk at 30°, the light is redirected laterally and upwards, creating a much softer light.

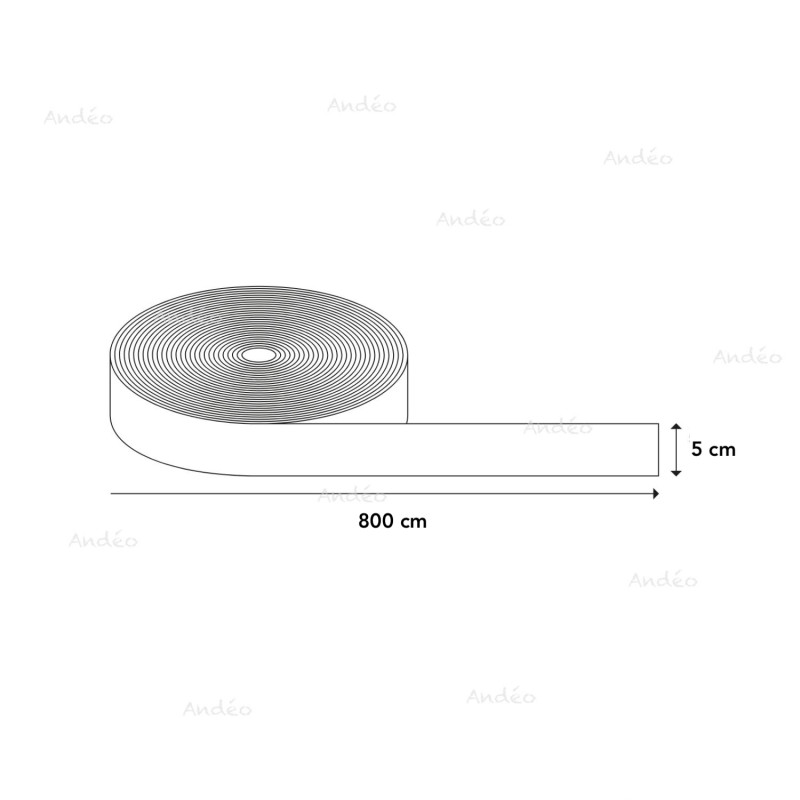

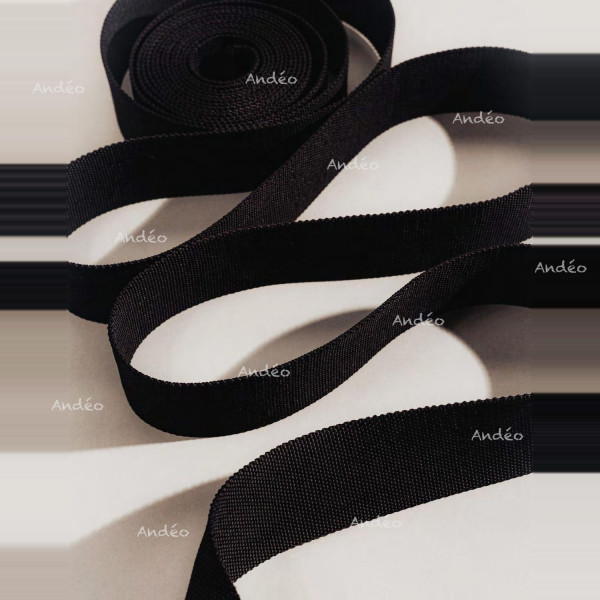

The electrified fabric has a length of 8 meters and can be cut to shorten it. You can also combine multiple strips to create longer compositions. If you have more than 200 cm between different light points, you will need to use the Ceiling Bracket accessory from the related items below, to keep the strip straight.

We offer here Lodes Map in the Triac version, which is the model adjustable in light intensity with Triac-compatible dimmers, also known as Phase-cut dim or Phase-cut. This version allows you to have up to 5 light points from a single power supply.

For more than five light points, please contact us, there are different options available for this.

Your power supply can be located at the end of your composition with your fabric strip starting to the right or left, but the power supply point can also be placed in the middle of your composition, with the fabric strip extending to the right and left.

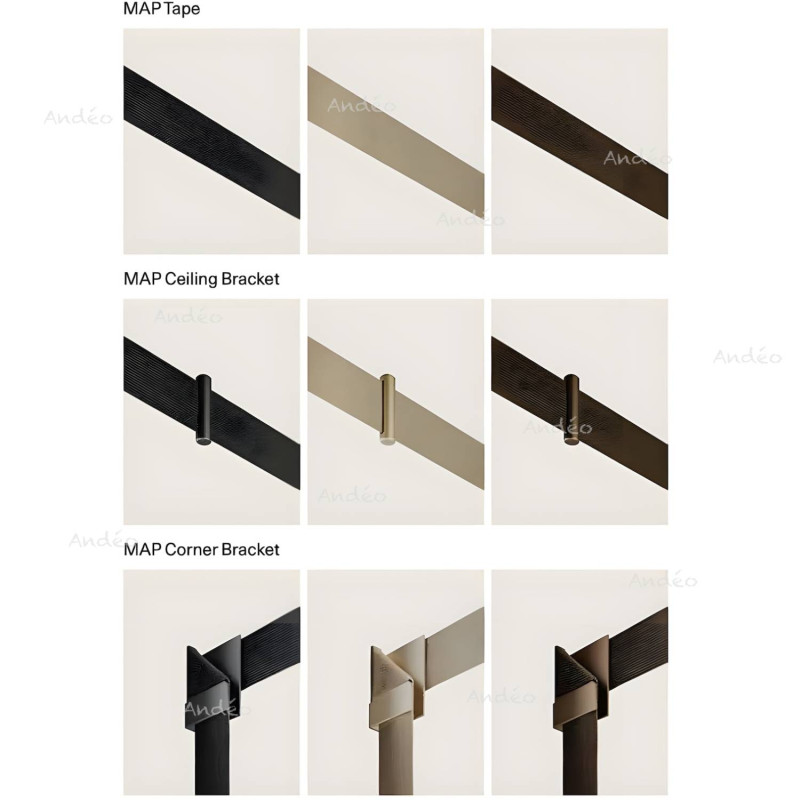

With the Corner Bracket accessory from the related items below, you have the possibility to create compositions combining wall lights and ceiling lights on the same strip.

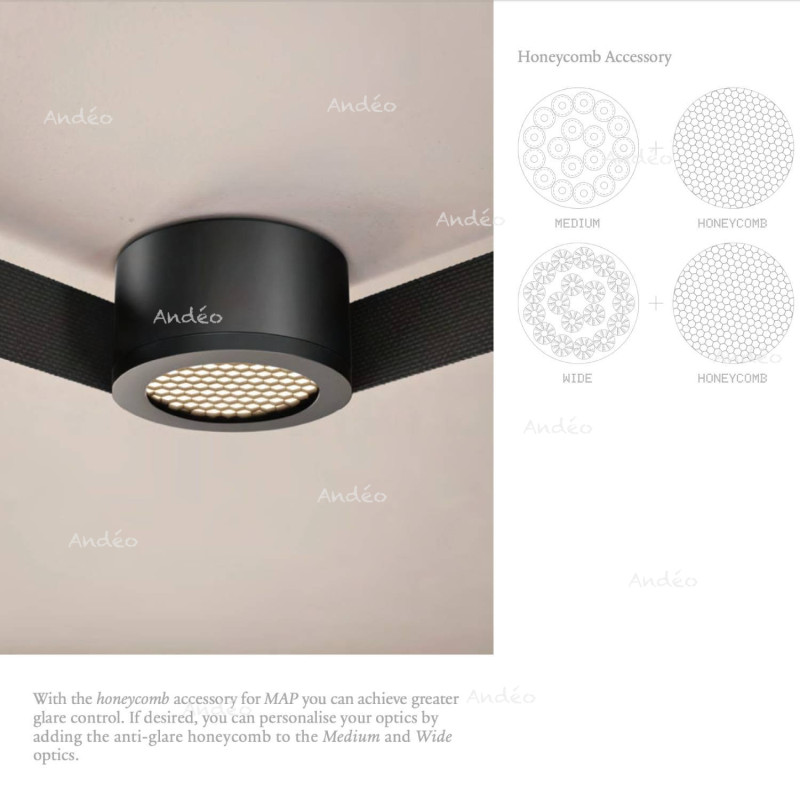

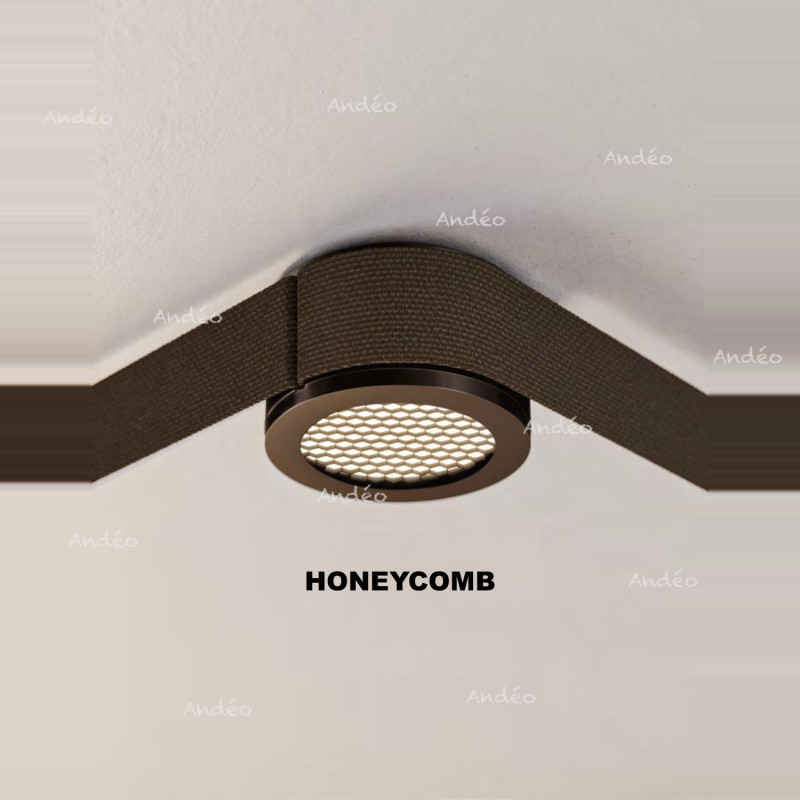

For the Medium Optics 26° Honeycomb and Wide Optics 55° Honeycomb versions, this version helps to reduce glare for light-sensitive people, or in professional environments for a lower UGR.

If you have any questions, or wish to create more light points, feel free to contact us, we will be happy to advise you.

We offer here versions where you use the same types of lighting for the different light points, and an 8m fabric strip.

If you wish to combine different types of lighting, contact us, or create your project from scratch with the link below where all the individual Lodes MAP accessories are available.

=> complete Lodes Map collection

Lodes Map

Characteristics per light point (power at the LED output)

7.5W LED - 2700°K / 3000°K - 900 lm / 918 lm (+/- 60W halogen)

This lighting is equipped with LEDs in warm white 2700°K and 3000°K, during installation, you choose the light colour you want.
