Dali Starting Point Map Lodes

Starting Point Dali Map from Lodes is the starting point for the electrical power of your lighting composition with fabric strip.

This light point comes with a transformer compatible with dimming the light intensity using Dali switches.

From this point, you can choose to go to the right or left with the fabric strip for powering the ends of your composition, but Starting Point Dali can also be placed in the middle of your composition, then you can go to the right and left with the fabric strip.

This version allows you to have up to 8 light points from a single power supply.

For more than eight light points, please contact us, there are different options available for this.

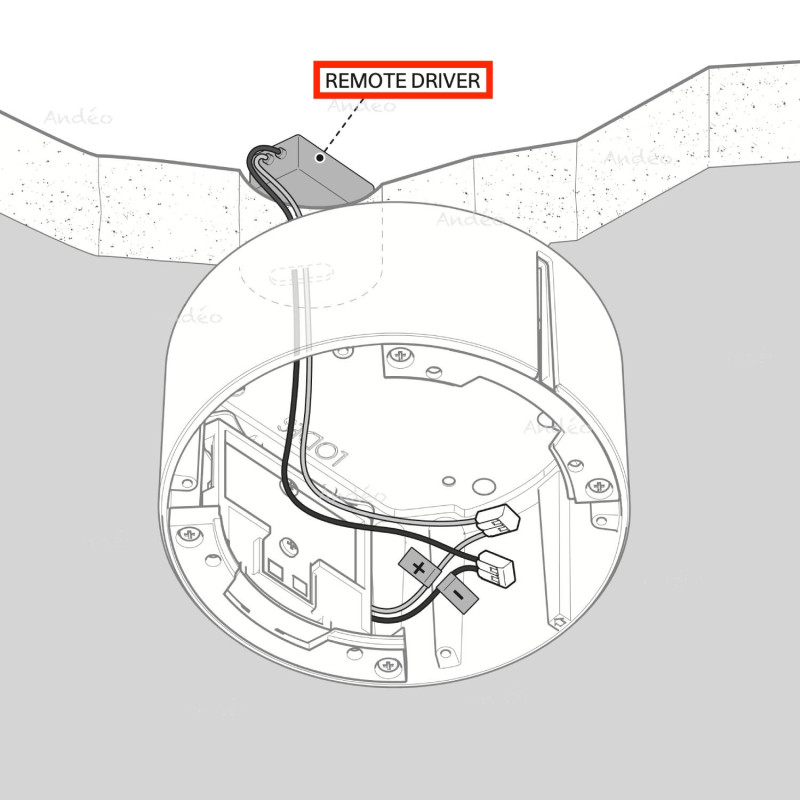

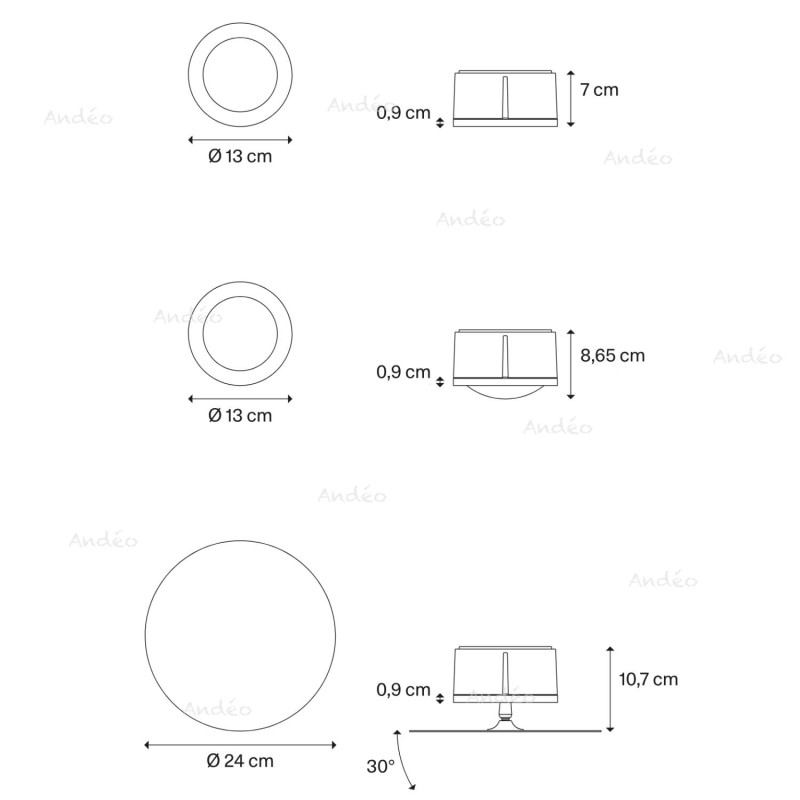

Note, in the Dali version of the Starting Point, the transformer does not fit in the round housing, it must be installed externally, either in the false ceiling if available, or in the electrical panel, for example.

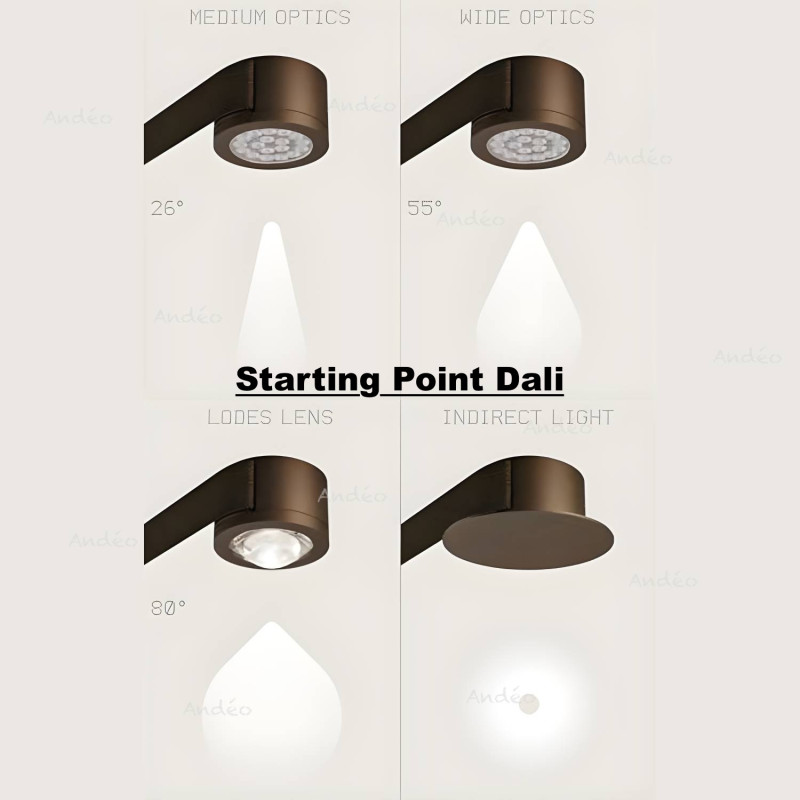

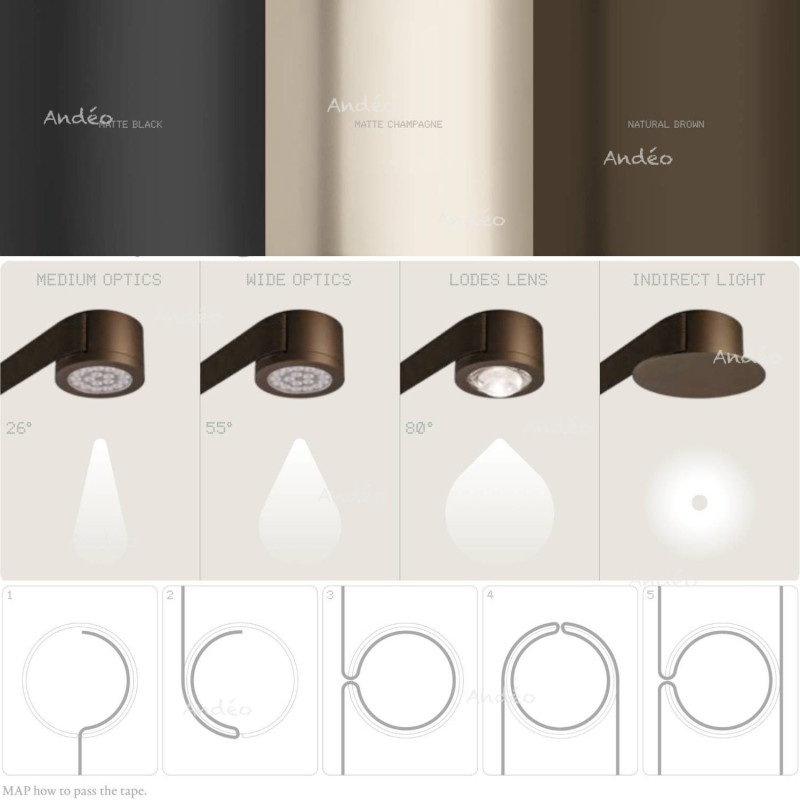

For the lighting, 6 options are available to you, 5 for direct lighting ("spot effect"), and one for indirect lighting:

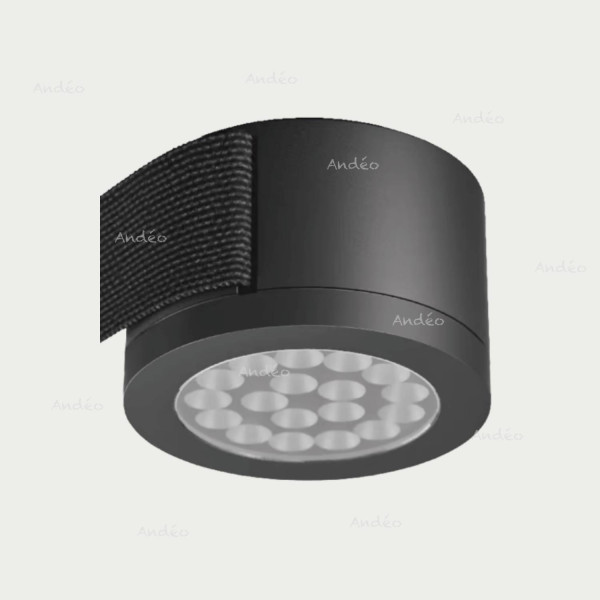

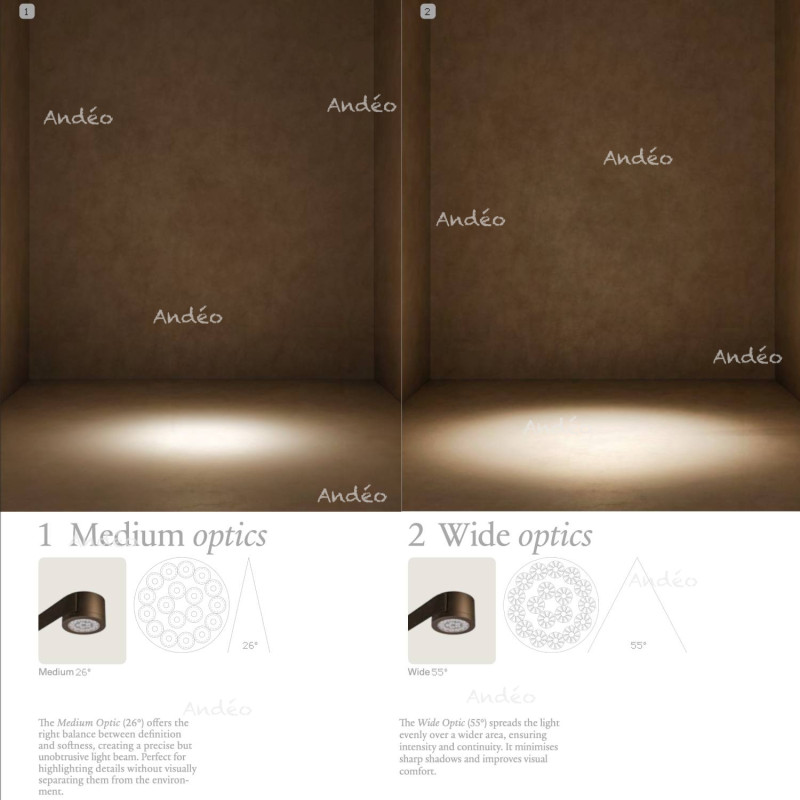

- Medium Optics 26°: concentrated beam, perfect for highlighting an object or intensely lighting a specific area.

- Medium Optics 26° + Honeycomb: Same characteristics as the above product + anti-glare accessory.

- Wide Optics 55°: for a less concentrated light distribution, more typical of a classic spot.

- Wide Optics 55° + Honeycomb: Same characteristics as the above product + anti-glare accessory.

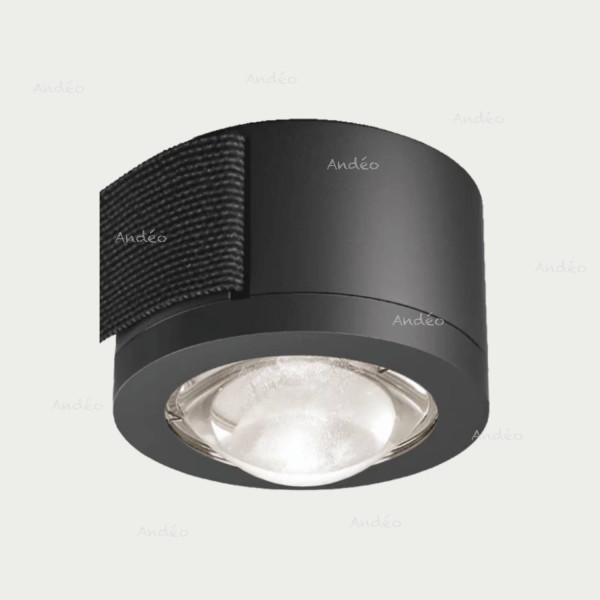

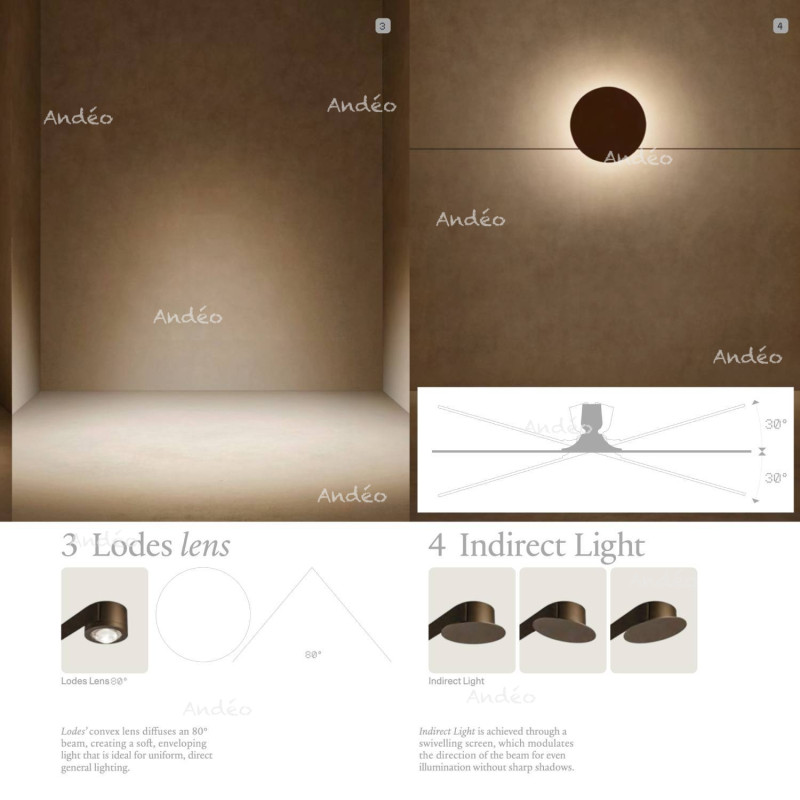

- Lodes Lens 80°: for a more diffuse and enveloping light, ideal for general lighting.

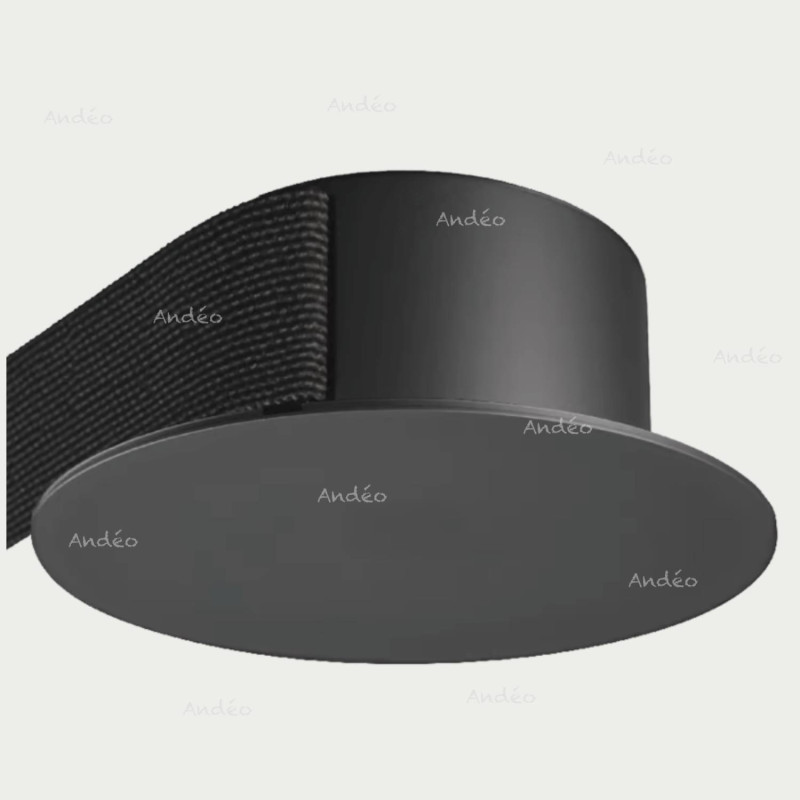

- Indirect Light: thanks to an inclinable disk at 30°, the light is redirected laterally and upwards, creating a much softer light.

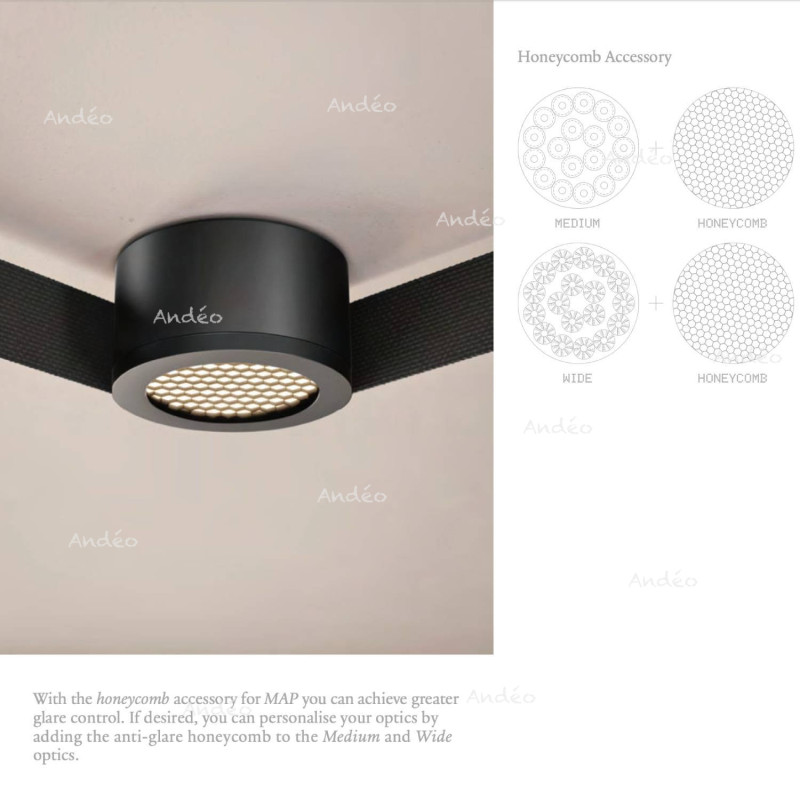

Medium Optics 26° Honeycomb and Wide Optics 55° Honeycomb, are versions that help to reduce glare from the light for light-sensitive people or in professional environments for a lower UGR.

If you have any questions or wish to create more light points, feel free to get in touch, and we will be happy to advise you.

Starting Point Dali Map Lodes

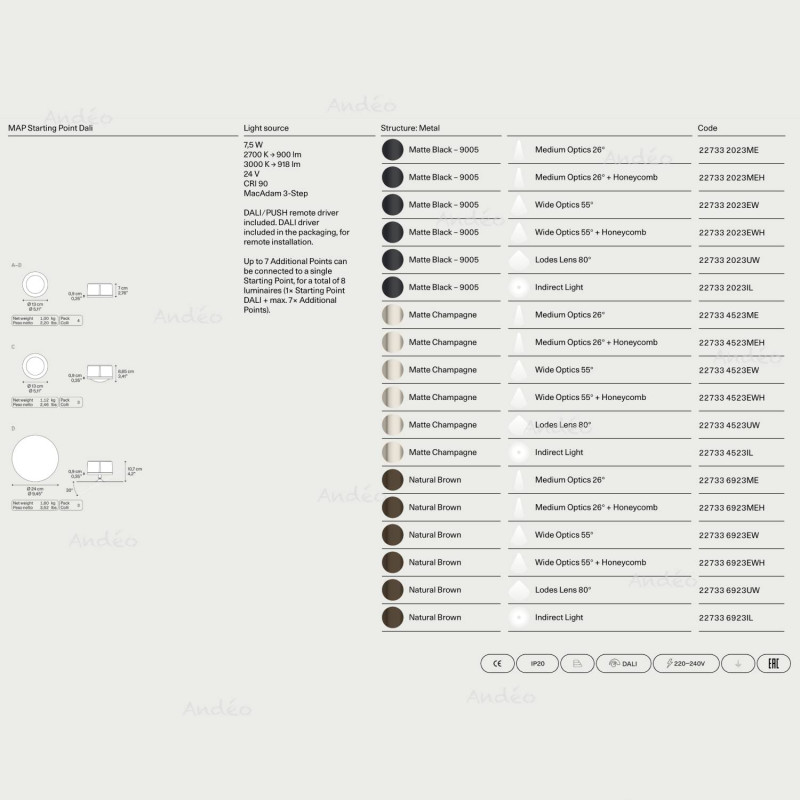

Characteristics per light point (power at the LED output)

7.5W LED - 2700°K / 3000°K - 900 lm / 918 lm (+/- 60W halogen)

This lighting is equipped with LEDs in warm white 2700°K and 3000°K, during installation, you can choose the light colour you want.
